Diamond Vantage

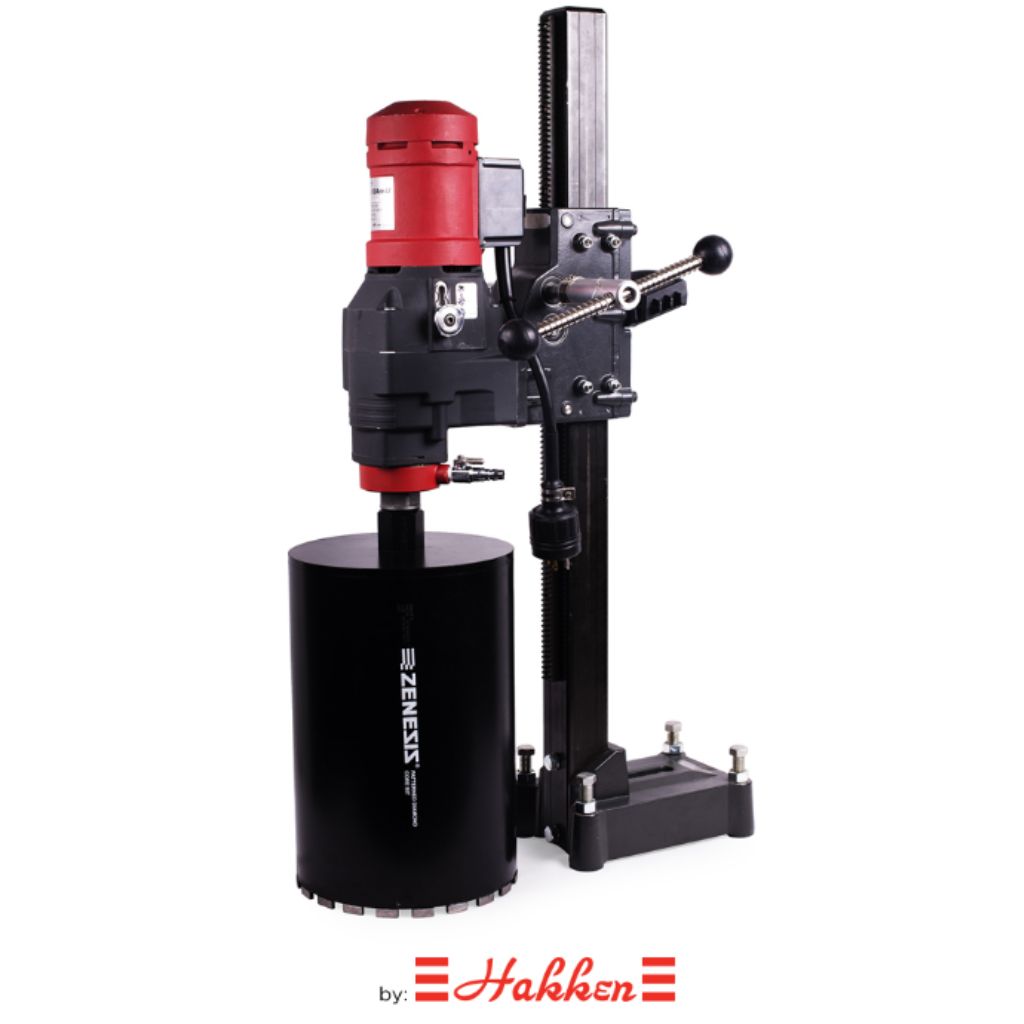

SMD16 Core Drill

Regular price $3,199.99 USD
Regular price Sale price $3,199.99 USD
Sale Sold out
Shipping calculated at checkout.
  • Spindle thread size 1 1/4"-7 (industry standard)
  • Motor comes with slip clutch that can be easily adjusted from outside the motor
  • 4 adjustable leveling screws for drilling uneven surfaces
  • Double insulated construction
  • Water valve swivels 360 degrees
  • Engineered for both vertical and horizontal drilling
  • Light weight drill is easy to carry and lift for wall drilling
  • Roller slide carriage provides smooth drilling with low friction
  • Automatic Feeding System available
  • One-year limited warranty
POWER 230V
RATED CURRENT 15.8A
MAX OUTPUT 6.4kw (8.6HP)
MAX BIT CAPACITY 16"
SPINDLE THREAD 1-1/4"-7
COLUMN THICKNESS 2-5/16"
STAND HEIGHT 39-3/8"
CARRIAGE TRAVEL 24-3/8"
ANCHOR BASE 7.5" W x 10" L
CLUTCH TYPE Slip
SPEED+L2 300/800/1400 RPM (No Load)
WEIGHT 76 lbs. (34.5kg)

Materials

These blades consist of a steel core and diamond segments, which are made by combining synthetic diamond crystals with metal powder.
