Diamond Vantage

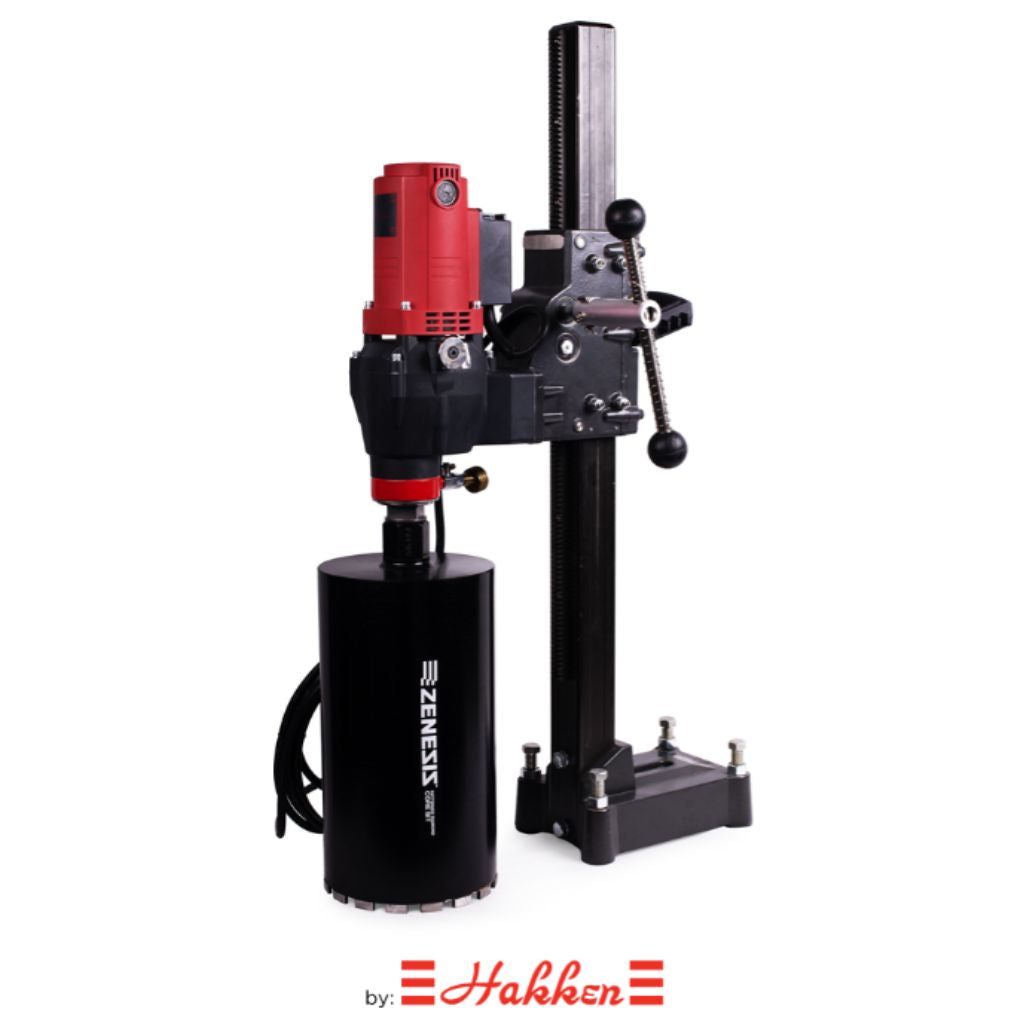

SMD12 Core Drill
Regular price
$1,849.99 USD
Regular price
Sale price
$1,849.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Spindle thread size 1 1/4"-7 (industry standard)
- Motor comes with slip clutch that can be easily adjusted from outside the motor
- 4 adjustable leveling screws for drilling uneven surfaces
- Double insulated construction
- Water valve swivels 360 degrees
- Engineered for both vertical and horizontal drilling
- Light weight drill is easy to carry and lift for wall drilling
- Roller slide carriage provides smooth drilling with low friction
- One-year limited warranty
| POWER | 115V, 20A drill motor |
| CORE BIT CAPACITY | 12" |
| SPINDLE THREAD | 1-1/4"-7 |
| COLUMN THICKNESS | 2-5/16" |
| STAND HEIGHT | 39"-3/8" |
| CARRIAGE TRAVEL | 24-3/8" |
| ANCHOR BASE | 7.5" W x 10" L |
| CLUTCH TYPE | Slip |
| SPEED | 400/950 RPM (Dual) |
| WEIGHT | 68 lbs. (30.8 kg) |
Materials
Materials
These blades consist of a steel core and diamond segments, which are made by combining synthetic diamond crystals with metal powder.
Shipping & Returns
Shipping & Returns
Product is shipped via UPS Ground unless customer request expedited shipping. Expedited shipping will be at the customers expense regardless of the amount purchased. For returns, please see the return policy.
Dimensions
Dimensions
Measurements are shown in selections above.
